Name |

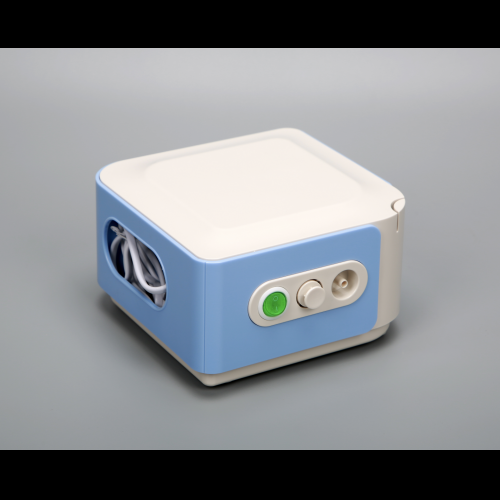

Compressor Nebulizer |
|
Model |
DL-C02，DL-C03 |
|
Power |
AC230V 50Hz |
|
Input Power |
160VA |
|
Delivery pressure |
≥0.06MPa |
|
Operation environment |
Ambient temperature range: 10℃～40℃ Relative humidity range:40～75%RH Atmospheric pressure range: 70KPa～106KPa |
|
Air flow rate |
≥7L/min |
|
Noise |
≤ 65dB(A) |
|
Aerosol output rate＊ (by Breathing simulator) |
0.07ml/min |
|
Residual volume＊(by Breathing simulator) |
＜1ml |
|
Percentage of fill volume emitted in 1min＊(by Breathing simulator) |
3.6% of a 2ml dose |
|
Particle size＊(by NGI) |
MMAD：3.2um ＜2μm：27.8% ≥2μm，＜5μm：42.8% ＞5μm：29.5% GSD：2.2 |
Operating Steps
Ø Assemble the Disposable Nebulizer as described in the Disposable Nebulizer instruction for use of the Disposable Nebulizer.
Ø Fill the Disposable Nebulizer as described in the Disposable Nebulizer instruction for use of the Disposable Nebulizer.
Ø Plug the power plug into a suitable socket.
Ø Turn on the power switch;
Ø After the main unit works normally for 1 ~ 2 minutes, connect the Compressor Nebulizer and the disposable nebulizer cup with tubing;
Ø Check that an aerosol is being generated before you start with the inhalation and inhale as described in the Disposable Nebulizer instruction for use of the Disposable Nebulizer.
Ø After the treatment, please turn off the power switch and disconnect the power plug from the mains socket .
Please download the instruction for use by scanning below QR code.
